DuraFab® 88-12T

PTFE Coated Fabric

Product Data for DuraFab® 88-12T

All Available Data

General Information

Substrate Woven Fiberglass
Coating PTFE
Color Black

Specifications

Nominal Thickness 0.012 in.
Coated Weight 1.2 lbs. / sq. yd.
Standard Widths (in.) 53
Tensile Warp 300 lbs. / in.
Tensile Fill 300 lbs. / in.
Tear Warp 140 oz.
Tear Fill 120 oz.
Elongation Till Break 3%
Continuous Operating Temperature Range -100° to 550° F
Nominal Thickness 0.305 mm
Coated Weight 650.990 gsm
Tear Warp 38.92 N
Tear Fill 33.36 N
Elongation Till Break 3%
Continuous Operating Temperature Range -73° to 288° C
DuraFab® HD Elite Fabrics

AFC’s DuraFab® HD Elite Fabrics

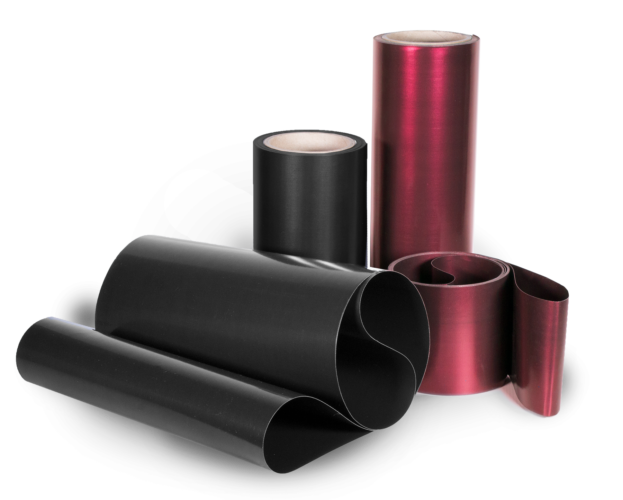

NEW PRODUCT LINE: AFC's most dynamic product line to date, the HD (Heavy Duty) Elite series was engineered for superior heat transfer while resisting abrasion, punctures, oil, and grease ingress. 85 (burgundy) and 88 (black) composite fabrics are coated with an extremely durable PTFE mix. This provides desired thermal transfer and clean release in aggressive applications, such as vinyl window welding and pizza crust processing, that can approach 550°F. Contact AFC to learn how the HD Elite series can improve your manufacturing process. Need tape? Explore the 285 and 288 DuraStick® lines here.
